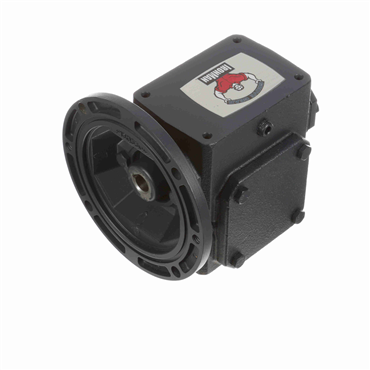

GR-BMQ818-15-R-56 Engranaje de arboleda
GR8180124.00 SERIE GR - REDUCTORES DE ENGRANAJE SIN FIN DE HIERRO FUNDIDO REDUCCIÓN SIMPLE
Este producto no tiene combinaciones válidas.
| Series: GR Series - Ironman Worm Gear Reducers |
| Product Type: Worm Speed Reducer |
| Housing Material: Cast Iron |
| Product Line: GR Series - Ironman Worm Gear Reducers |
| Gear Type: Worm |
| Input Style: C-Face Quill |
| Output Torque Rating (in-lb): 571 |
| Ratio: 15:1 |
| Ratio Range: 15:1 |
| Output Shaft: Solid Shaft |
| Output Diameter (in): 0.875 |
| Output RPM: 116 |
| Service Factor: 1 |
| Series Code: GR |
| HP Range: 1 to 1-1/2 (< 2) |
| Mounting Style: Base |
| Output Torque Range: 500 to 1000 in lbs |
| Center Distance (in): 1.75 1.75 |
| Output Shaft Direction: Right |
| Reduction: Single |
| Input RPM: 1750 |
| Input Diameter (in): 0.625 |
| Center Distance Range: 1" thru 3.25" |
| No. of Gear Reductions: Single |
| Assembly: BMQ-R |
| Output Key: 3/16 X 1.38 |
| Output Shaft Assembly Code: R |
| Reducer: Worm - Right Angle |
| Model Code: BMQ818 |
| Shaft Seal Material: Viton |
| Input HP: 1.224 |
| Motor Frame Size: 56C |
| Input HP @ 1750 RPM: 1.224 |
| Output HP: 1.058 |
| Reducer Style: Worm - Right Angle |
| Input Bore (C Face): 0.625 |
| Input Keyway (C Face): 3/16 x 3/32 |
| Output Style: R |
| Thrust Rating - output shaft: 1144 |
| Overhung Load Rating (Output Shaft(lb)): 1200 |
| Output Shaft Orientation: R |
| Series Style: GR-BMQ-R |
| Frame Size: 56C |
| Keyway: 3/16 X 3/32 |
| Series Type: Cast Iron 800 Worm Gear Reducers |
| Input Quill Diameter (in): 0.625 |
| Overhung Load: 1200 |
| TAP Depth: 0.63 |
| H-Tap size: 5/16-18 UNC |
